Including a Filter on the Left Side

In this chapter, you will add a Sources filter on the left side.

There may be times when you want the content of a filter to be visible at all times. For example, you may want the Sources to always be displayed and filterable without having to click on a filter button.

One option is to add the filter on the left side so that it is visible and usable as you search.

note

If you are using your own Sinequa instance, you should modify these values for your own selected metadata.

First, you will need to import the AggregationComponent into the search-all component so that it can be used in your filter.

1. Go to src > app > pages > search > all > search-all.component.ts.

2. At about line 11 (line numbers are subject to change), look for the following import statement:

import { AggregationsStore, AppStore, DidYouMeanComponent... SponsoredResultsComponent, UserSettingsStore } from
'@sinequa/atomic-angular';

3. After UserSettingsStore, add a comma followed by AggregationComponent.

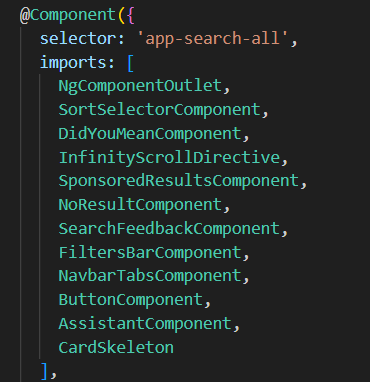

4. Then go to about line 51 (line numbers are subject to change), and you should find an imports array inside of the @Component decorator:

5. After the last item in this array (it was CardSkeleton in this image but it could change over time), add a comma followed by AggregationComponent.

This allows the AggregationComponent to be used inside the template of search-all component.

6. Go to src > app > pages > search > all > search-all.component.html.

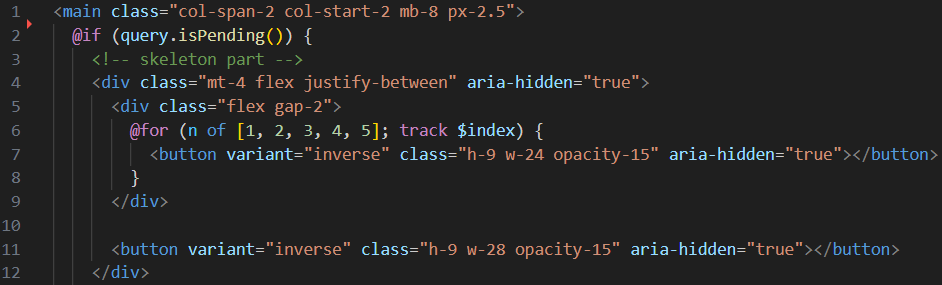

At the top, you should see a <main> element:

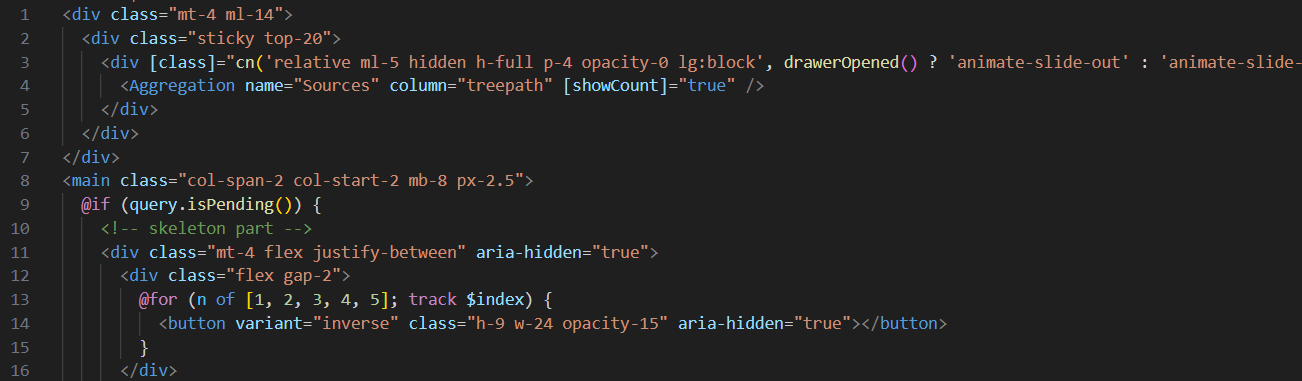

7. Add a line space before the <main> element and paste the following above the <main> element:

<div class="mt-4 ml-14">
  <div class="sticky top-20">
    <div [class]="cn('relative ml-5 hidden h-full p-4 opacity-0 lg:block', drawerOpened() ? 'animate-slide-out' : 'animate-slide-in opacity-100')">
      <Aggregation name="Sources" column="treepath" [showCount]="true" />
    </div>
  </div>
</div>

note

This code block uses spacing (ml-14, mt-4), makes the filter sticky as you scroll (sticky top-20), and conditionally shows or hides it based on whether the preview panel is opened or closed.

8. Save your changes.

note

If you followed the Connection to the Sinequa demo server tutorial, Mint should recompile automatically. If not, execute the npm run start command in the terminal.

9. Go to your Mint application and search for assisstant.

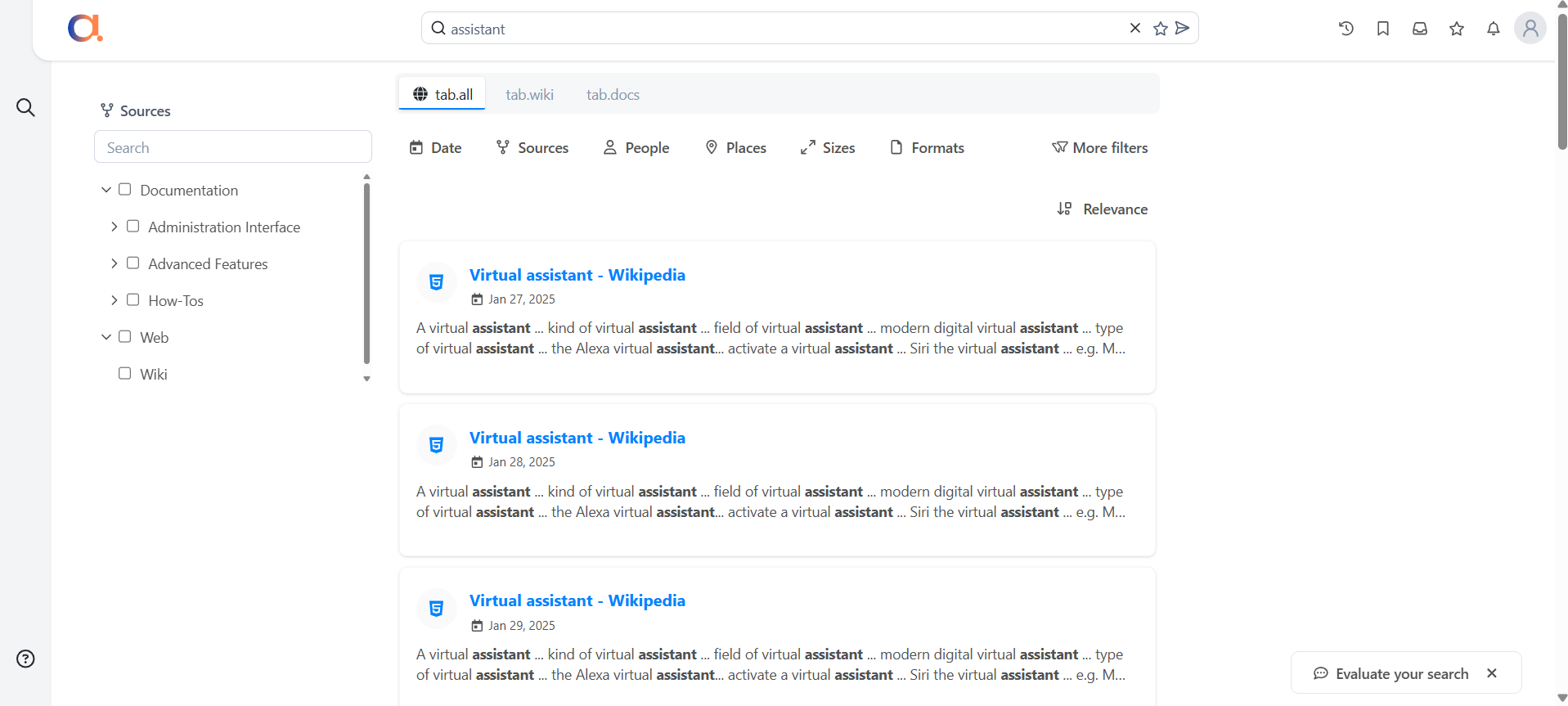

You should now see a Sources filter on the left side of Mint.

note

In the provided screenshot, the branches have been expanded manually. Your Sources filter will initially display collapsed branches.
