Preview

The Preview feature allows the viewing of the content of a document with many searching tools. It is included in the side drawer opening upon clicking on a document in the results list.

Architecture​

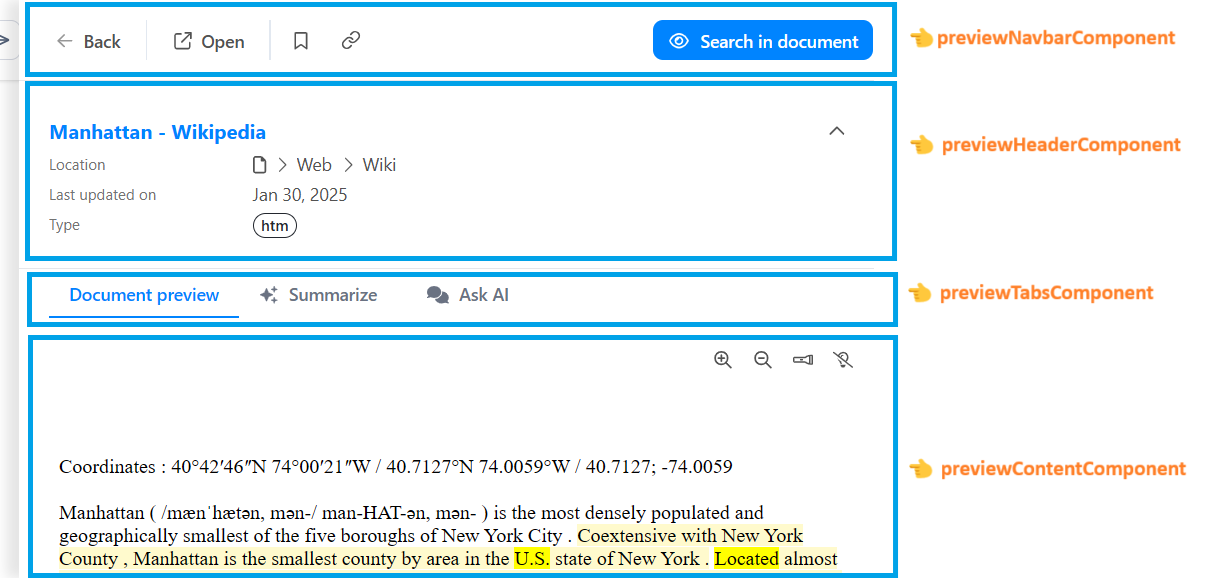

The Preview component (PreviewComponent) is composed of many components:

preview component
  • The Navbar (PreviewNavbarComponent) handling many actions related to the preview and document such as opening it in a new tab, adding it to the bookmarks or displaying the advanced search.
  • The Header (PreviewHeaderComponent) displays the document's data such as the title, location, modified date and type.
  • The Tabs (PreviewTabsComponent) displays some tabs navigation, used here to allow having a Summary and Discussion tabs to have the AI Assistant to respectively make a summary of the current document, and to chat about it. It is displayed if one of these assistants is allowed.
  • The Assistant (AssistantComponent) for both the summary and discussion tabs.
  • The Content (PreviewContentComponent) displaying the document content iframe.

It is included in a drawer component (DrawerPreviewComponent), from the @sinequa/atomic-angular library, which couples it with a search component (AdvancedSearchComponent) offering ways to interact with the preview content such as navigating through the found entities and extracts.

How does the preview opens itself?​

In order to open the preview drawer, multiple steps are at play:

  • Upon clicking on an article in the results list, it is selected in the Selection Store and the drawer is asked to be opened
  • When opening, the Drawer (DrawerStackComponent) takes the last selected article from the Selection Service (SelectionHistoryService) which is based on the Selection Store.
  • The found article is then injected into the children component, here being the Preview Drawer
  • The Preview then initializes itself based on the configuration to display the different elements (filters, tabs for the assistants)
